Beyond the
Valve

Integrated electric and pneumatic actuation with smart, ready configurations for demanding process environments.

01 // Integration

Engineered
Automation
Integration

The EFSVALVES Automation Center provides complete valve automation solutions based on pneumatic, electric and electro-hydraulic actuation. Each assembly is engineered around the valve design, operating conditions and control philosophy, with actuator sizing, accessories and fail-safe requirements selected to meet project-specific torque, safety and performance criteria.

We integrate limit switch boxes, NAMUR solenoid valves compliant with VDI / VDE 3845, and certified sensors and components for hazardous areas including ATEX and SIL. Automation assemblies may also incorporate IEC-ready positioners, digital feedback transmitters and condition monitoring modules prepared for integration into plant control and asset management systems.

Complete packages can include pneumatic accessories, manual override systems and emergency devices, as well as automation systems for ESDV / SDV, BDV and MOV applications, all configured according to project specifications and compliance requirements.

From Manual Valves
to Smart Control Units

Same valve, multiple control architectures

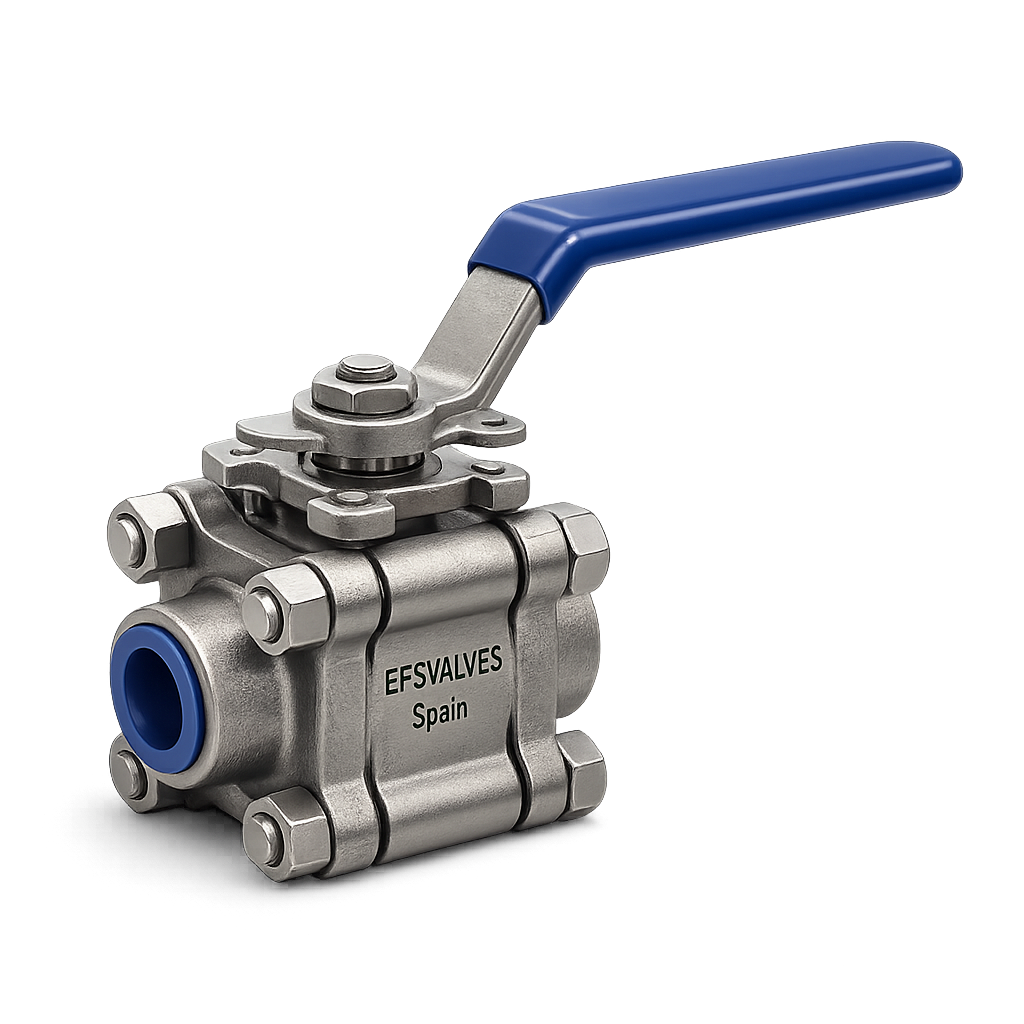

Manual Valve

Manual Valve

Basic manual valve

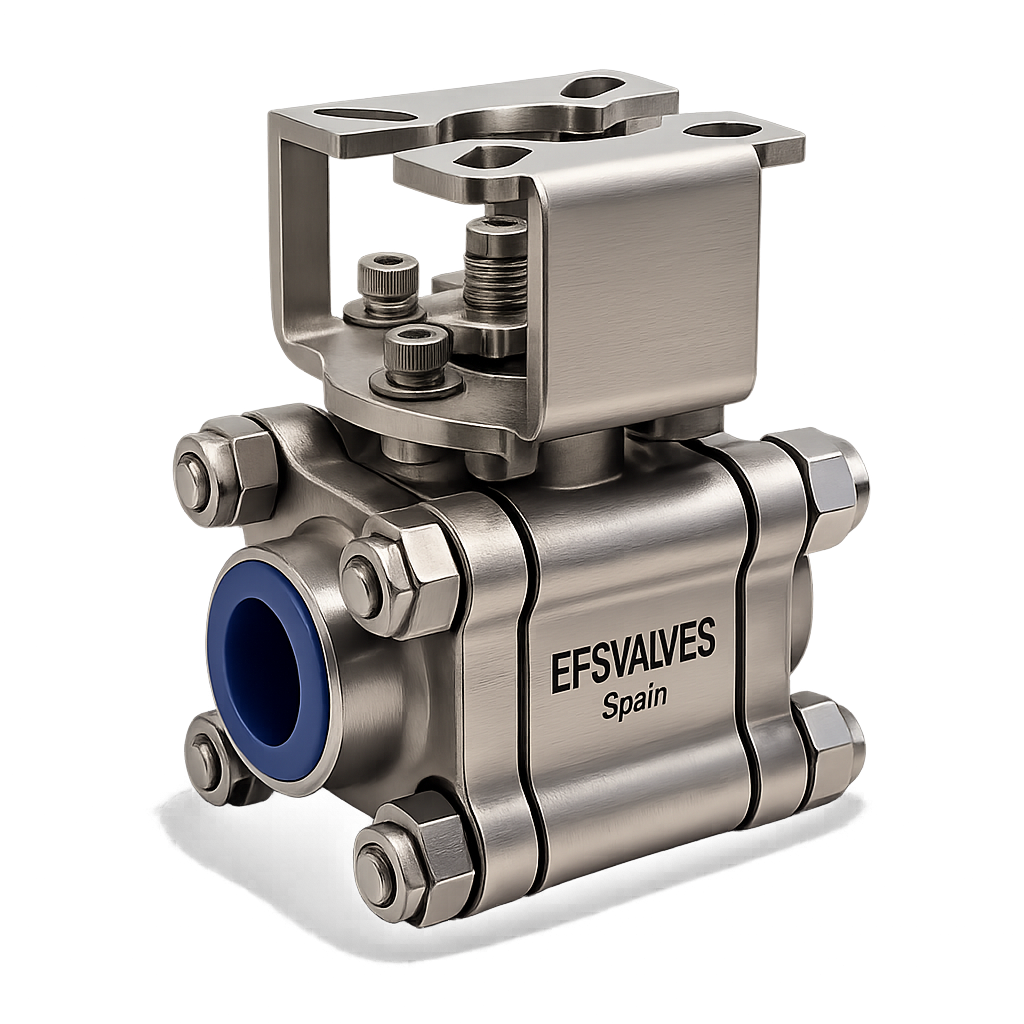

Automation Interface

Automation Interface

IEC bracket installation

Fail-safe ready

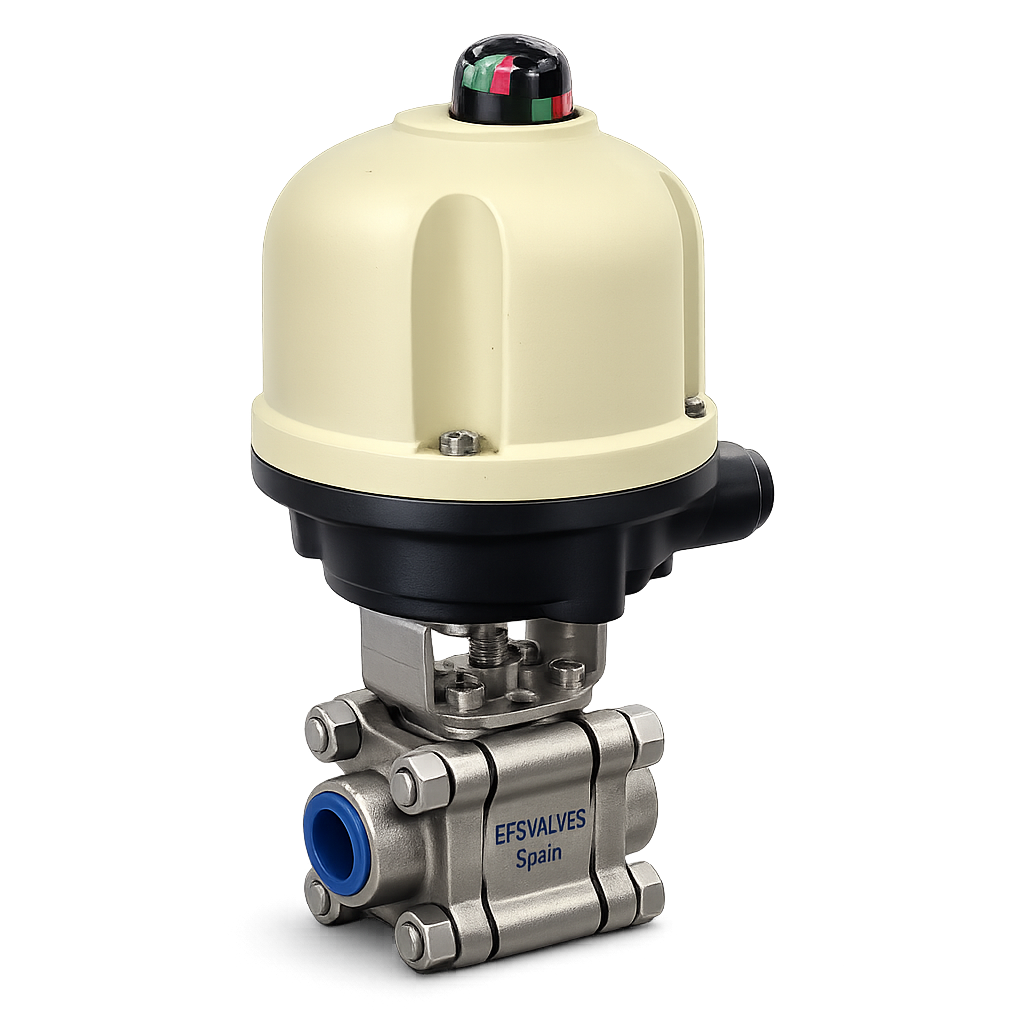

Automatic Valve

Automatic Valve

Fully automatic valve with

different configurations for IoT applications

02 // Engineering Process

Engineering
Steps Behind
The Transformation

Every automation assembly follows a structured technical evaluation and integration workflow.

01

Process Data Review

  • ->Operating conditions
  • ->Temperatures
  • ->Asset concerns
  • ->Fail-safe guidelines
02

Torque Calculation

  • ->Dynamic torque under differential pressure
  • ->Safety factor definition
  • ->Stem and bearing analysis
03

Actuator Selection

  • ->Pneumatic or electric
  • ->Single or double acting
  • ->Fail-safe configuration
  • ->Aux. components
04

Mechanical Integration

  • ->Bracket design
  • ->Alignment control
05

Control Architecture

  • ->IEC protocols
  • ->NAMUR solenoids
  • ->Limit switches
  • ->Feedback transmitters
06

Testing and Documentation

  • ->Operational conditions
  • ->Calibration reports
  • ->User manual
  • ->Project documentation

Find Our Automation Options
That Suit Your Needs

Our automation portfolio covers pneumatic, electric and electro-hydraulic actuation platforms for quarter-turn and linear valves, including rack and pinion, scotch yoke and multi-turn solutions with single or double acting configurations and fail-safe options.

The range is complemented by precision valve positioners, NAMUR solenoid valves according to VDI / VDE 3845, limit switches, feedback transmitters and certified ATEX / SIL assemblies for hazardous areas.

Pneumatic control components such as filter regulators, solenoid valves, pressure switches, pilot and locking valves, air accumulator kits and thermal protection devices are also available for complete system configurations.

Engineered packages include ESDV / SDV shutdown valves, BDV blowdown valves, MOV motor operated valves, emergency manual override systems, dead-man lever solutions and fully integrated automation skids.

Explore the complete automation product range ->
