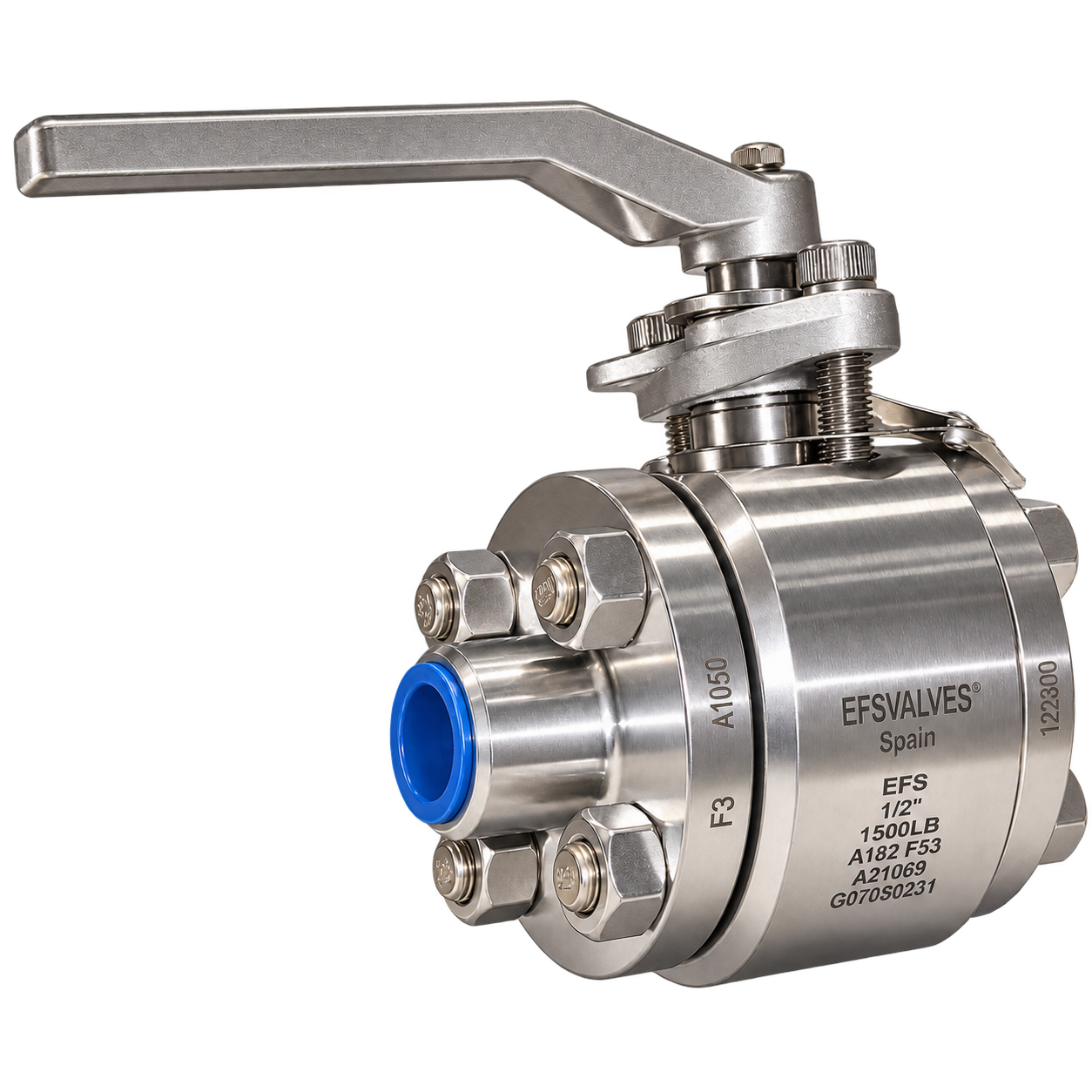

3 PIECE EXOTIC ALLOY BALL VALVE
EF40
- High-performance 3-piece ball valve for corrosive and demanding applications
- Available in Super Duplex, Hastelloy and Titanium for maximum corrosion resistance
- Full bore design with ISO 5211 mounting for easy automation and minimal pressure drop
Applications
Configured Service Scope
Chemical
Corrosive Service
Oil & Gas
Petrochemical
Seawater / Desalination
Water Treatment
Key Specifications
Nominal Sizes½” to 4”
Pressure RatingClass 800 (800 lbs)
Temperature Range-29°C to +150°C
Design StandardsASME B16.34 / DIN EN 17292
End ConnectionsNPT / BSP / SW / BW
MaterialsSuper Duplex (A890 5A) / AISI904L / Hastelloy / Titanium
Related Articles
From Technical Blog
PREN, Wp and Pitting Corrosion Factor in Valve SelectionEFSVALVES at Valve World 2024 in DüsseldorfSuper Duplex 3-Piece Ball Valve for Desalination and Seawater ServiceHow to Select the Right Exotic Alloy Ball Valve for Corrosive Service
Read More ArticlesRelated Products
Selection & RFQ Assistant
Help us identify the right solution
Guided request
Build a technical RFQ line with service data, sizing conditions, accessories and documents.
01
Service
02
Process
03
Options
FAQs
Yes. Super Duplex stainless steel is widely used for seawater, desalination and other chloride-rich services because of its high resistance to pitting and crevice corrosion compared with conventional austenitic stainless steels.
The final material selection should always consider the actual chloride concentration, temperature, pressure and operating conditions of the application.
For demanding seawater and chloride-rich applications, Super Duplex grades with PREN values of approximately 40 or higher are commonly specified.
PREN, or Pitting Resistance Equivalent Number, is a useful indicator for comparing resistance to localized corrosion, particularly in chloride-containing environments. However, PREN should not be used as the only selection criterion, as temperature, actual material chemistry and service conditions also influence corrosion performance.
Both Duplex and Super Duplex stainless steels provide improved corrosion resistance compared with conventional austenitic stainless steels, but Super Duplex generally provides higher resistance to pitting and crevice corrosion in demanding chloride environments.
For seawater, desalination and other high-chloride services, Super Duplex is therefore frequently considered where the service conditions require a higher level of corrosion resistance.
Final selection should be based on the actual process conditions and project requirements.
Super Duplex should be considered when the expected chloride exposure, temperature or overall corrosion conditions exceed what can reasonably be handled by 316L stainless steel.
This is particularly relevant in seawater, desalination and other chloride-rich applications.
Material selection should nevertheless be based on the complete service conditions rather than on the material grade alone.
ABOUT EF40
The EF40 3 piece ball valve is a high-performance industrial solution designed for demanding applications requiring maximum reliability, corrosion resistance and operational flexibility. Engineered in accordance with ASME B16.34 and DIN EN 17292 standards, this valve ensures robust performance in critical services across oil & gas, chemical processing, water treatment and desalination industries.
The 3-piece body design allows for easy maintenance and in-line serviceability, minimizing downtime and reducing lifecycle costs. Its full bore configuration guarantees optimal flow capacity with minimal pressure drop, making it suitable for both isolation and process control applications.
Manufactured in exotic alloys such as Super Duplex (A890 5A), Hastelloy and Titanium, the EF40 is specifically developed for highly corrosive and aggressive media, extending service life even under extreme conditions. The valve incorporates reinforced PTFE seats, ensuring tight shut-off and reliable sealing performance over a wide temperature range.
Designed with safety and operational integrity in mind, the EF40 includes a non-ejectable stem, antistatic device and fire-safe seat design, complying with the most stringent industrial requirements. Its bidirectional operation and ISO 5211 top flange enable seamless integration with manual, pneumatic or electric actuation systems, supporting modern automation and smart valve concepts.
Available in Class 800 (800 lbs) rating and suitable for temperatures from -29°C up to +150°C, the EF40 valve is a versatile solution for high-pressure systems where durability, safety and performance are critical.
Frequently Asked Questions
Yes. Super Duplex stainless steel is widely used for seawater, desalination and other chloride-rich services because of its high resistance to pitting and crevice corrosion compared with conventional austenitic stainless steels.
The final material selection should always consider the actual chloride concentration, temperature, pressure and operating conditions of the application.
For demanding seawater and chloride-rich applications, Super Duplex grades with PREN values of approximately 40 or higher are commonly specified.
PREN, or Pitting Resistance Equivalent Number, is a useful indicator for comparing resistance to localized corrosion, particularly in chloride-containing environments. However, PREN should not be used as the only selection criterion, as temperature, actual material chemistry and service conditions also influence corrosion performance.
Both Duplex and Super Duplex stainless steels provide improved corrosion resistance compared with conventional austenitic stainless steels, but Super Duplex generally provides higher resistance to pitting and crevice corrosion in demanding chloride environments.
For seawater, desalination and other high-chloride services, Super Duplex is therefore frequently considered where the service conditions require a higher level of corrosion resistance.
Final selection should be based on the actual process conditions and project requirements.
Super Duplex should be considered when the expected chloride exposure, temperature or overall corrosion conditions exceed what can reasonably be handled by 316L stainless steel.
This is particularly relevant in seawater, desalination and other chloride-rich applications.
Material selection should nevertheless be based on the complete service conditions rather than on the material grade alone.
A 3-piece Super Duplex ball valve combines high corrosion resistance, full-bore flow and maintainability, making it particularly suitable for demanding desalination and seawater applications.

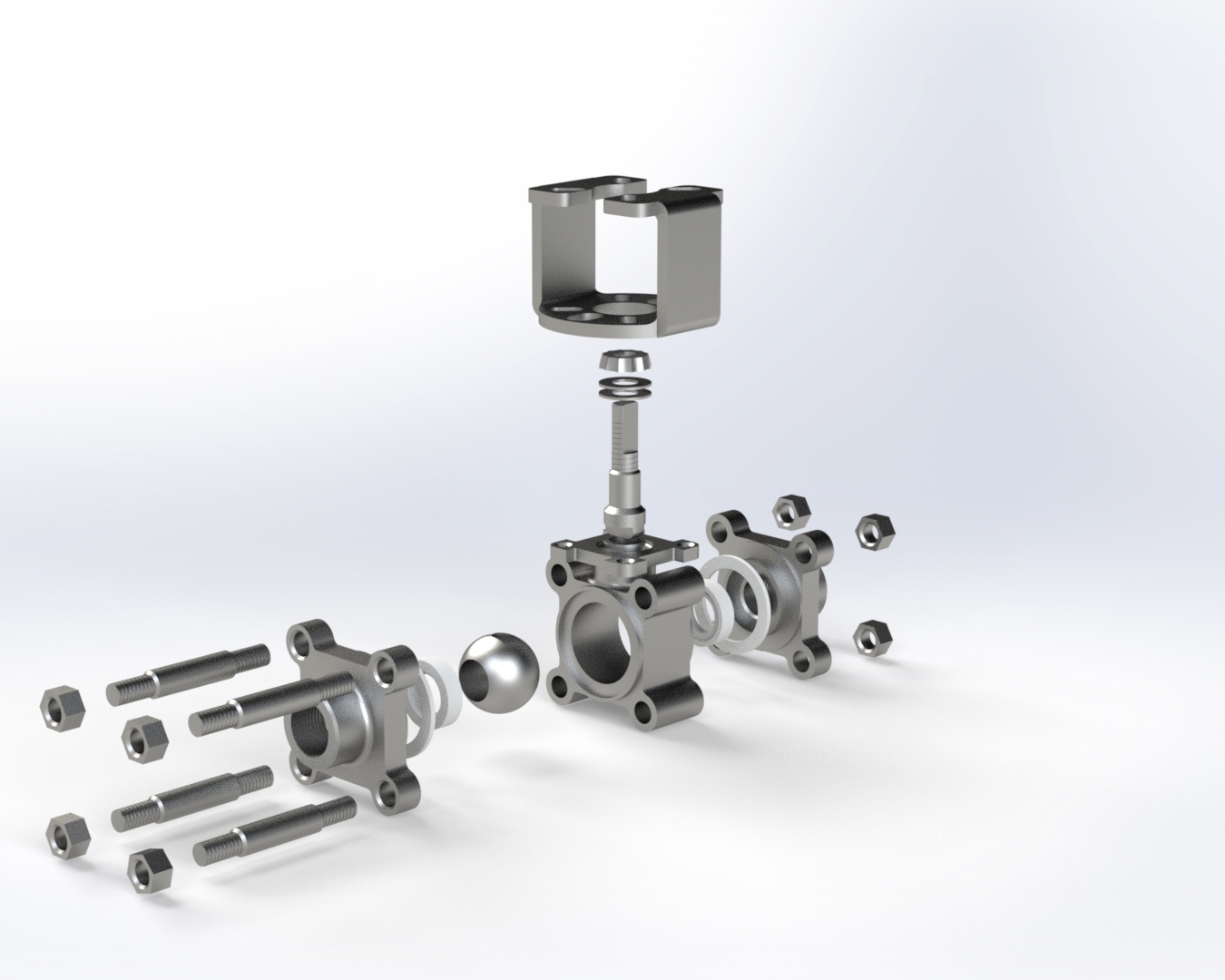

The Super Duplex construction provides resistance to chloride-rich environments, while the 3-piece design facilitates servicing and replacement of internal components without replacing the complete valve.
A full-bore ball valve provides a flow passage close to the nominal pipe diameter, helping to minimize pressure loss and flow restriction across the valve.
This can be particularly advantageous in desalination, high-pressure water and other applications where hydraulic efficiency and unrestricted flow are important.
Yes. The EF40 is available with several end connection options, including:
- NPT
- BSP
- Socket Weld (SW)
- Butt Weld (BW)
The appropriate connection depends on the piping system, pressure rating, installation requirements and project specifications.

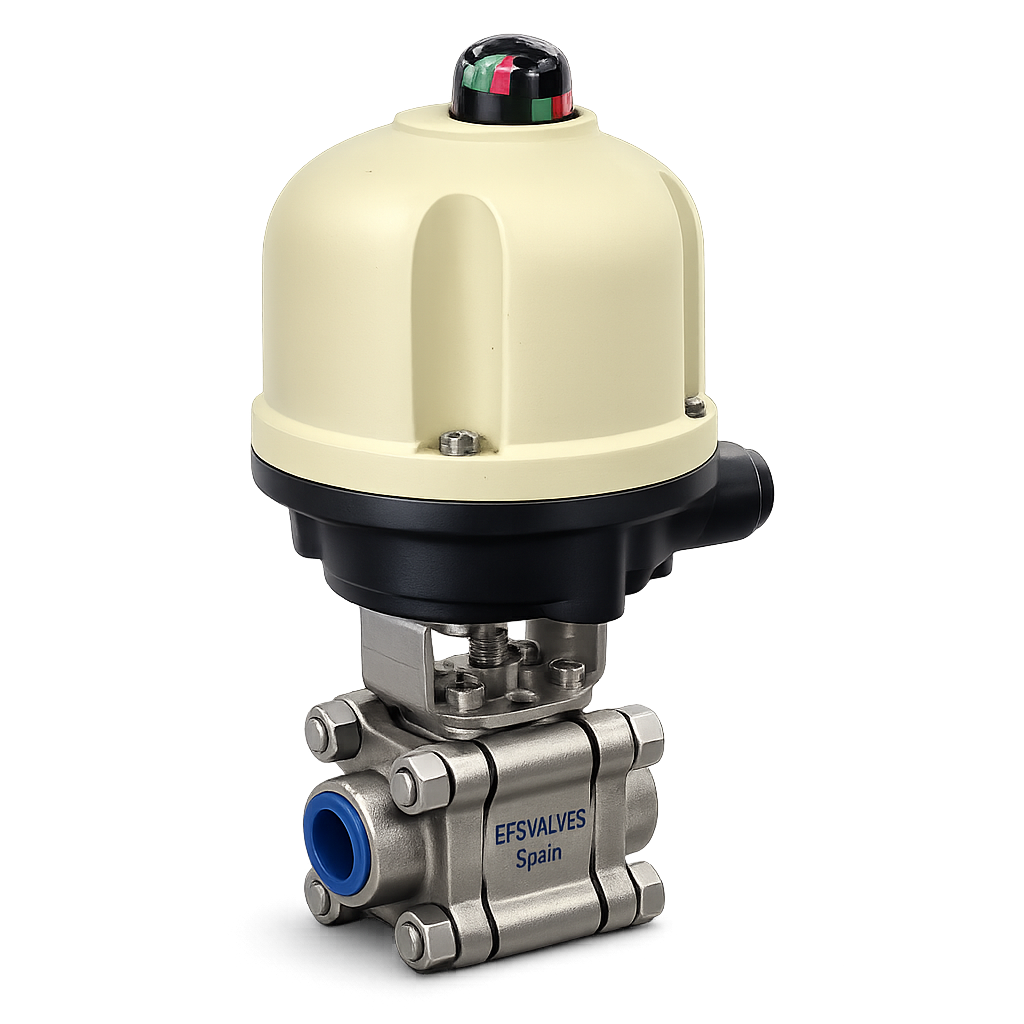

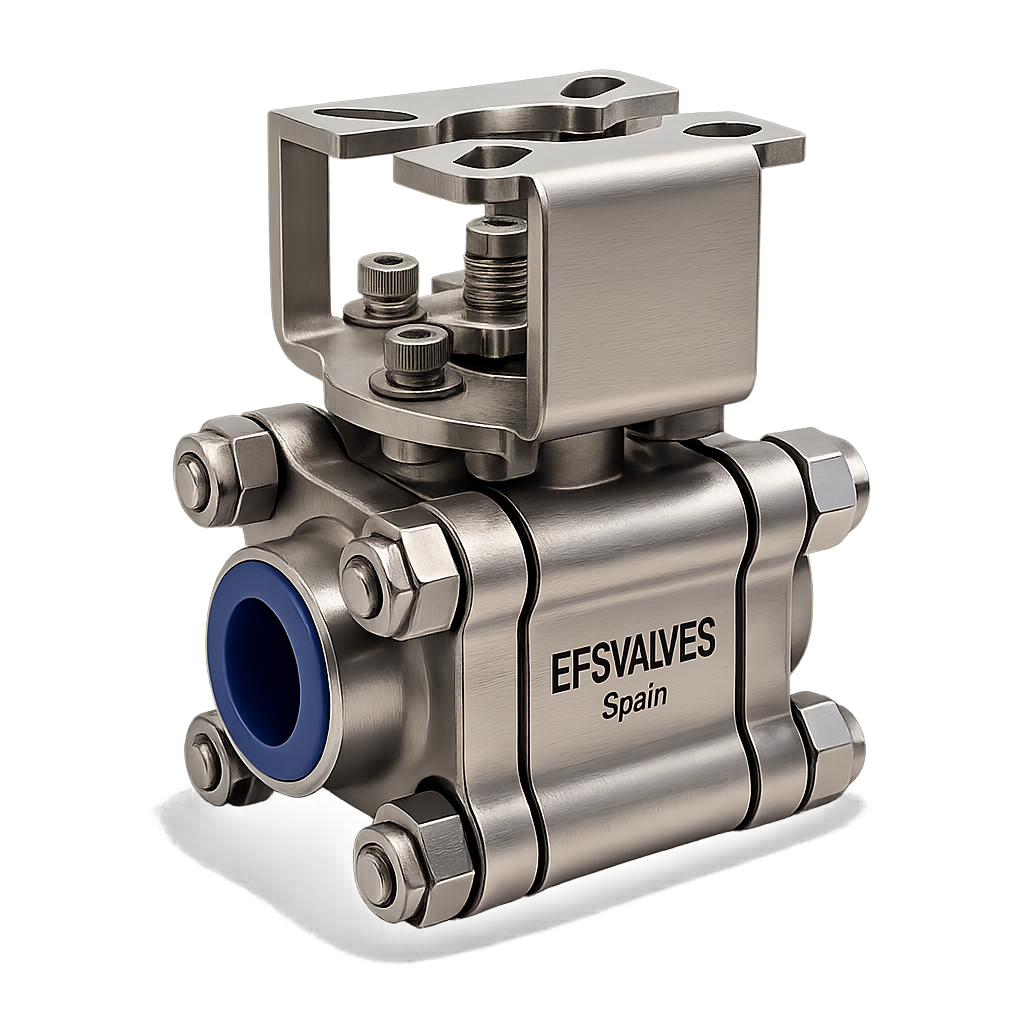

Yes. The EF40 incorporates an ISO 5211 mounting interface, allowing integration with pneumatic or electric actuators.
Complete automated valve configurations can therefore be supplied according to the operating and control requirements of the application.
The main information required normally includes:
- Process fluid
- Fluid concentration or composition where relevant
- Operating and design pressure
- Operating and design temperature
- Valve size
- Required end connections
- Material requirements
- Manual or automated operation
- Applicable project specifications
For project applications, any particular testing, inspection or documentation requirements should also be identified during the RFQ stage.
Yes. In addition to Super Duplex, the EF40 can be supplied in corrosion-resistant materials such as AISI 904L, Hastelloy and Titanium, depending on size, configuration and application requirements.
Different alloys may be considered according to the process fluid, corrosion mechanism, temperature and project specifications.
The material should therefore be selected for the actual service rather than simply choosing the highest alloy grade.
The EF40 design keeps the body bolting enclosed and protected within the valve assembly, reducing its direct exposure compared with conventional exposed-bolting arrangements.
For particularly demanding corrosive or marine environments, the bolting specification can also be upgraded. Depending on project requirements, options can include PTFE-coated bolting, higher-grade stainless steel or special-alloy bolting.
This allows the external bolting configuration to be adapted to the environmental and corrosion requirements of the installation.
For standard orders in Super Duplex material, delivery time can be comparatively short depending on stock availability and configuration.
For project orders, special configurations or exotic materials such as AISI 904L, Hastelloy or Titanium, delivery time depends on valve specifications, quantities and testing requirements.
The applicable delivery time is confirmed for each quotation.
Yes. We support logistics and delivery coordination according to project requirements, including export packaging, documentation and international shipments.
Additional services such as legalized documents or certificates of origin can also be arranged upon request.
Yes. Inspection and testing prior to delivery can be arranged in accordance with project specifications, applicable standards and customer requirements.
This includes third-party inspection and witness testing when required.
Yes. The EF40 can be supplied within EPC and project-managed environments where the valve package requires defined engineering, quality and documentation deliverables.
Depending on the agreed project scope, requirements may include approved data sheets and drawings, inspection and test documentation, material traceability, defined documentation schedules and coordination of project-specific technical requirements.
These requirements should be identified at RFQ stage so that the applicable scope can be evaluated and included in the quotation.
For project applications, the documentation and inspection scope can be adapted to the agreed requirements.
Depending on the specified scope, this may include EN 10204 material certificates, PMI reports, pressure test records, inspection documentation and applicable NDT reports.
Any specific PMI, NDT, third-party inspection or additional traceability requirement should be stated during the RFQ stage, as these requirements may depend on material, valve configuration and project specifications.
